WHAT IS THE NEXUS CONTROLLER?
Unlock your manufacturing potential without breaking the budget with ATek Automation's new Nexus Machine Controller. Featuring a full 3D environment that shows you exact machine movement, intuitive controls, consumable wear tracking, the ability to change cut parameters on the fly, convenient saved locations, overtravel protection, oxy fuel and straight-line beveling upgrades, and included Plate Solutions Nesting Software! If you are looking to step into the world of professional metal fabrication, don't want to spend a fortune, but don't want to compromise on cut quality and features, the Nexus Machine Controller from ATek Automation is for you!

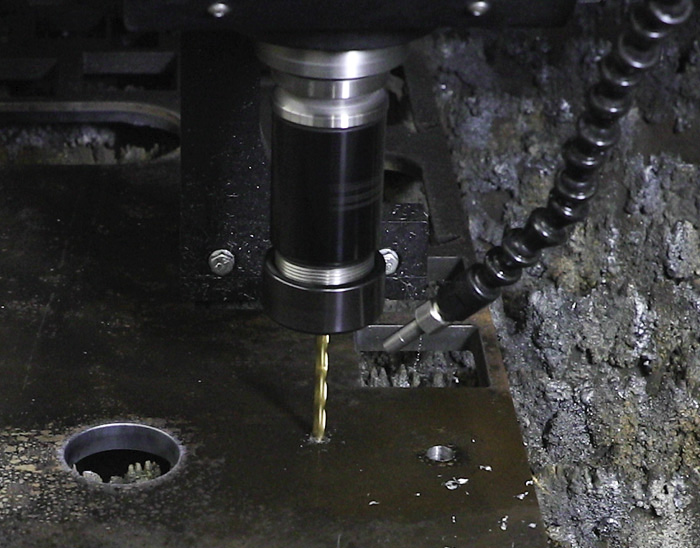

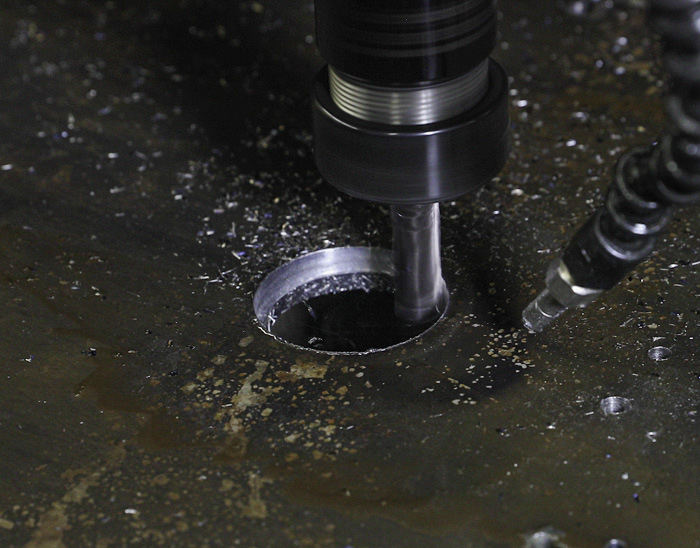

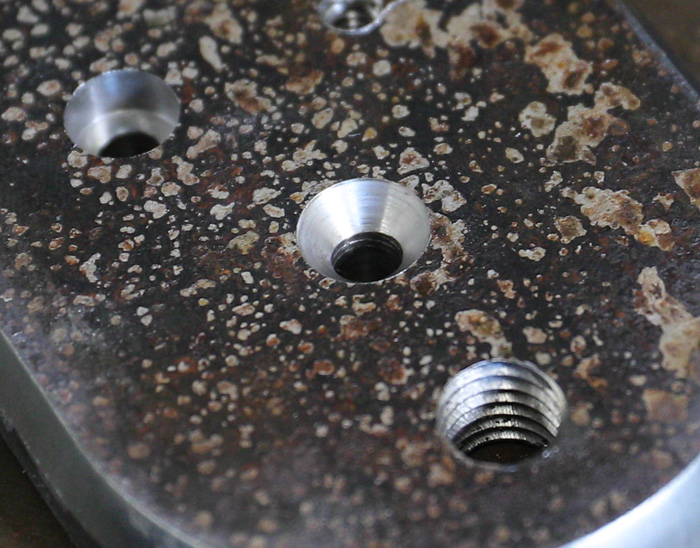

The engineers here at ATek Automation have made some upgrades to our 2HP drills. With a new, improved drill feed design, you get higher rigidity and less vibration. The newly designed pressure foot is more open, addressing the issue of mild chip buildup. With the ability to drill, mill, threadmill, countersink, counterbore, and rigid tap, these 2HP units are an upgrade to most any manufacturing setup!

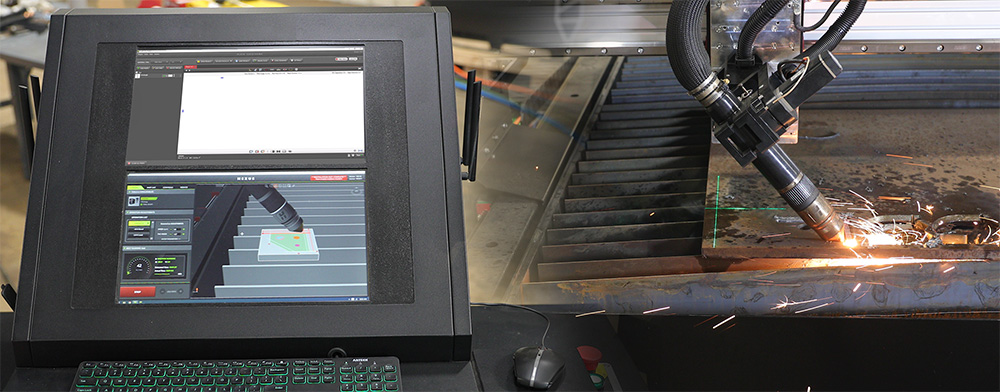

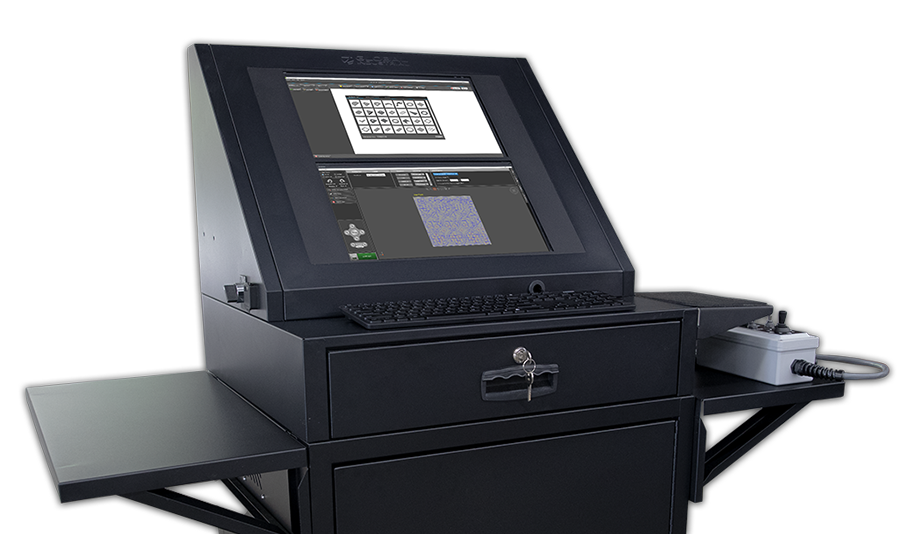

DUAL-MONITOR CONSOLE
Featuring a dual monitor setup in top and bottom configuration, you can keep an eye on the exact movement of your machine with real-time machine movement and an interactive 3D part view. At the same time, you can be adding parts, editing parts, and configuring your next nest to send to the machine.
Machine Controller Software
Full 3D Environment
Three dimensional recreation in real time of machine, it's operations, and nest being cut.
Straightforward, simple UI
Sleek, clean, and easy to use UI offers next level performance with simple, straightforward controls.
Power Loss Recovery
Our built-in Nest Recovery tool will come to your aid if unexpected power loss happens during production. Follow a few easy steps to get your nest and all your settings back quickly.
NESTING SOFTWARE
Powerful, yet intuitive nesting software is at your fingertips. Providing a plethora of tools and user adjustable options to make this usually time-consuming part of the manufacturing process a breeze.

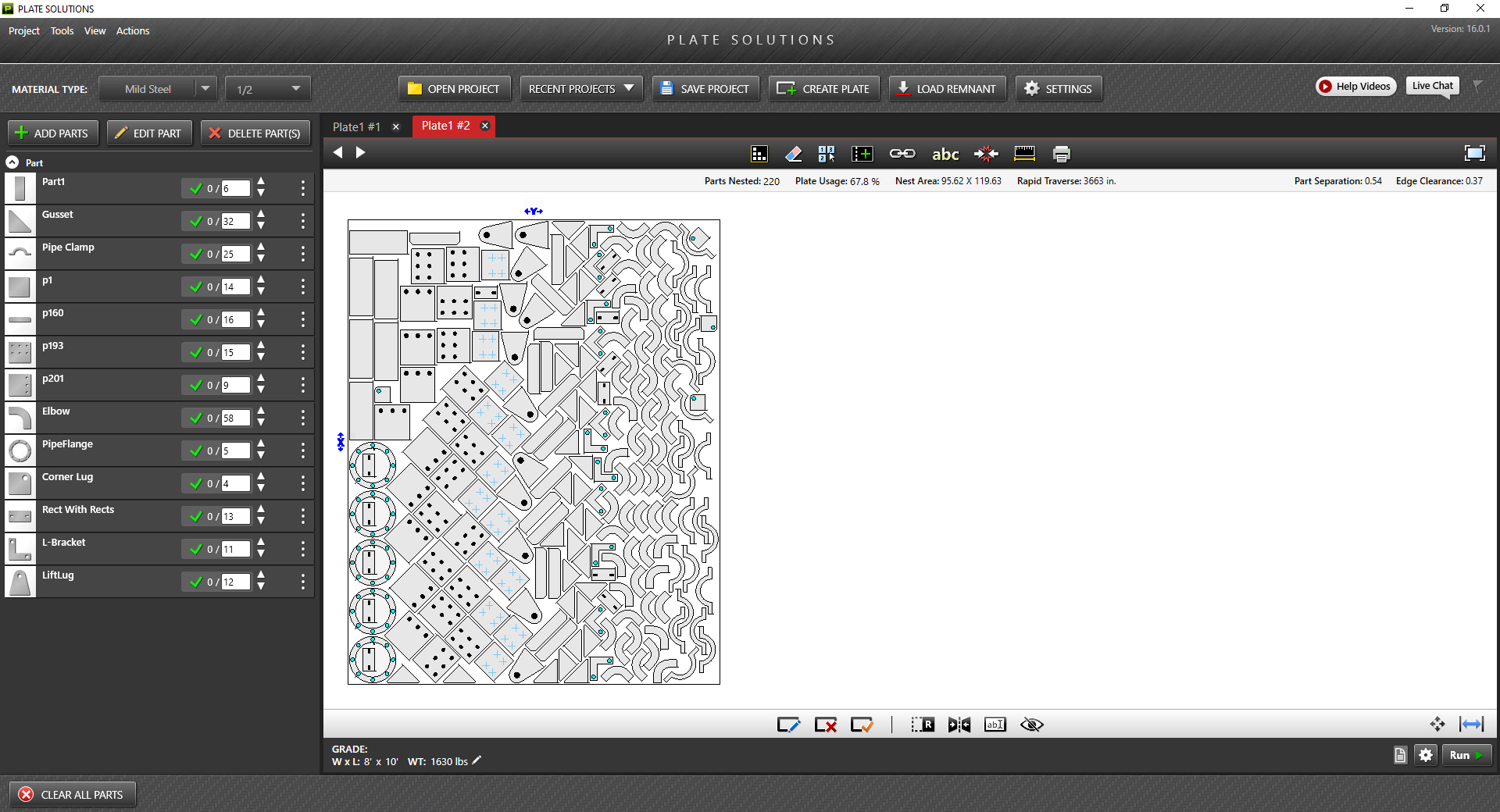

Plate Solutions Nesting Software
- ⌬ Intuitive Plate Nesting Software Pre-Installed on Controller.
- ⌬ Auto-Nesting with User Assigned Parameters Increases Overall Throughput.
- ⌬ Help Video Library and Service Tech Chat with Maintenance Plan

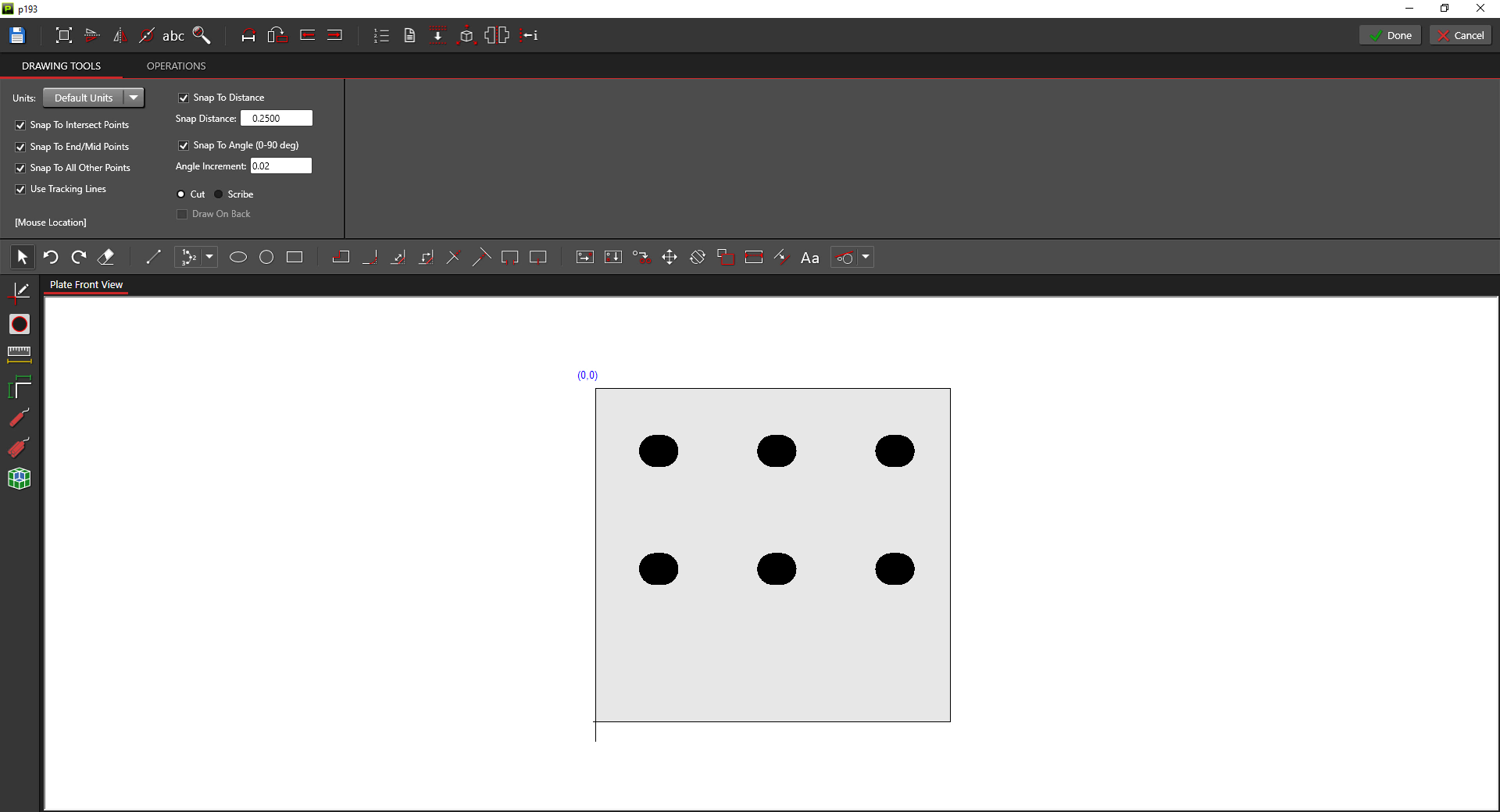

Full CAD/CAM Part Editing Package
- ⌬ Easily Edit Your DXF/DWG Drawing Files.
- ⌬ Generate Lead-Ins / Lead-Outs
- ⌬ Built-in 3D Part Viewer

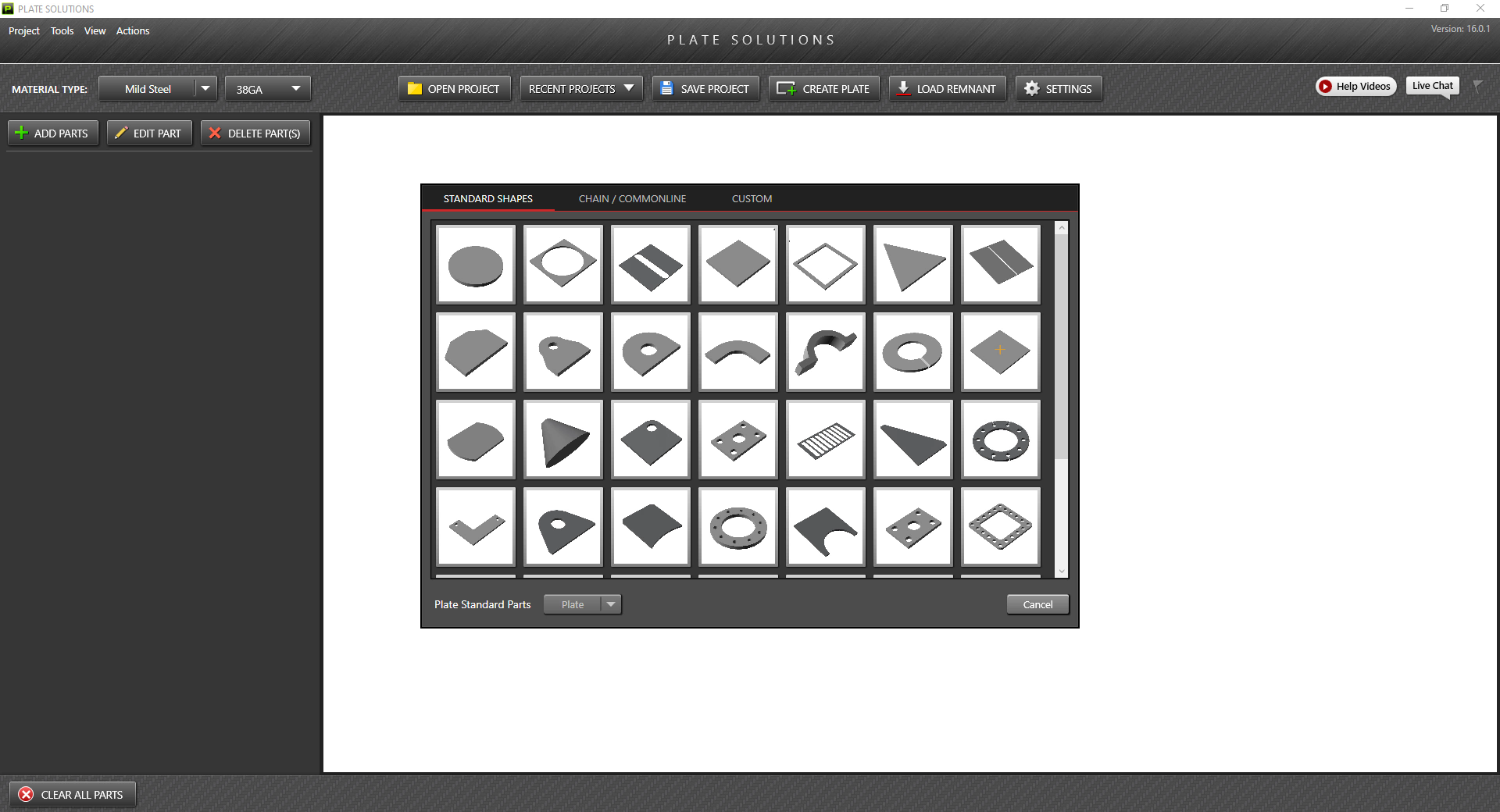

Customizeable Shape Library
- ⌬ Large Array of Standard Shapes for Commonly Made Parts.
- ⌬ Chain/Commonline Cutting Options.
- ⌬ Save Custom Parts To Library for Quick Loading.

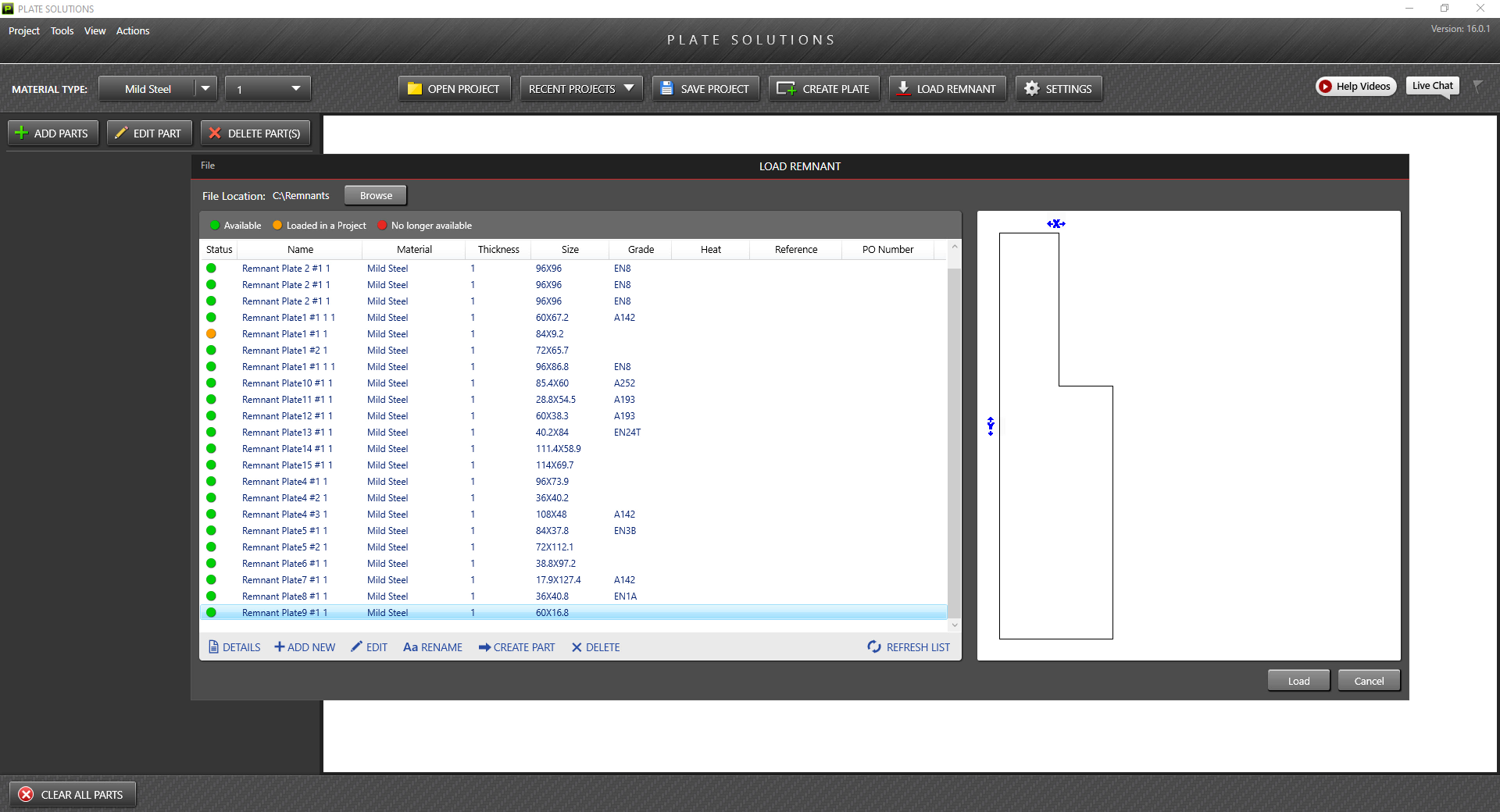

Built-In Remnant Manager
- ⌬ Keep Track of all Leftover Remnants
- ⌬ Customize Settings for Criteria for Leftover Remnants
- ⌬ Load Leftover Remnants as Plates to Nest Parts On
OPTIONAL ADVANCED NESTING UPGRADES AVAILABLE:
- ⌬ Bridge Cutting
- ⌬ Heat Number Generation
- ⌬ Intelligent Nest Optimizer
- ⌬ Additional Nest Arrangement Options (grid fit, etc.)
- ⌬ Tool Specific Kerfing
- ⌬ Group Parts by Hole Diameter (Useful for drill)
-OR-
Fully Upgrade to Steel Solutions Software
(Click Below for Details)
Compare Software Steel Solutions Site

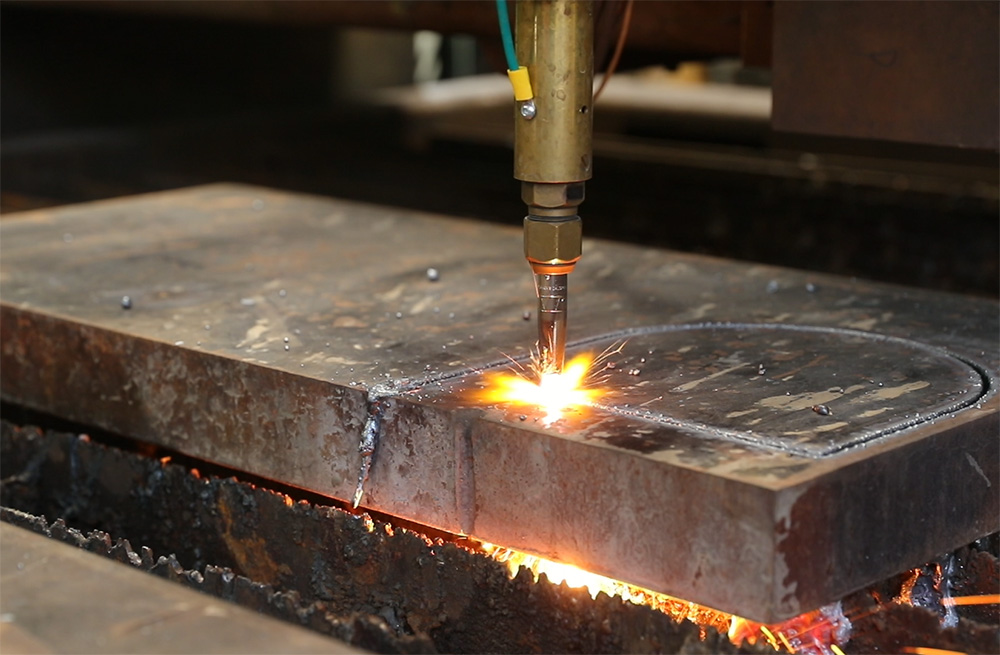

Oxy-Fuel Capabilities
Oxy-Fuel torches can offer some advantages over conventional plasma systems when you are attempting to cut thicker materials or ferrous materials. Oxy-Fuel also has a lower overall cost due to the lack of consumable parts found in plasma systems.

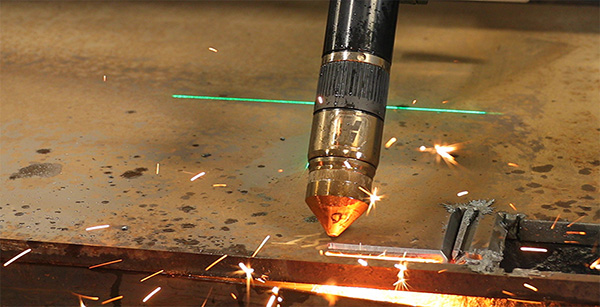

With the option to upgrade your system to include straight-line beveling, a wide variety of bevel cuts can be made: such as K, V, X, and Y bevels, greatly expanding your capabilities.

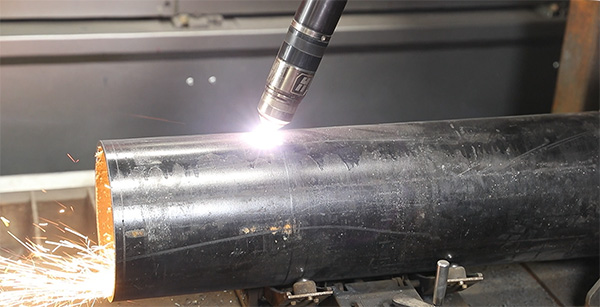

With single axis pipe cutting capabilities and the option to upgrade your system to include straight-line beveling, a wide variety of end cuts can be made to step up your pipe production game.
